HVLS Inverter Fan

HVLS Inverter Fan

Start Image

Royal Fans proudly presents the Royal HVLS Inverter Fan, engineered to deliver maximum airflow with minimal energy consumption. Designed for large spaces, this fan ensures gentle, consistent, and ultra-quiet air circulation, making every environment more comfortable, productive, and energy-efficient.



HOW IT WORKS

The Royal HVLS Inverter Fan features large aerodynamic blades that move air downward in a smooth vertical column. When the airflow reaches the floor, it disperses evenly across the space. This results in uniform cooling, improved air circulation, and reduced HVAC load, all while maintaining low energy consumption.

Middle Image

IDEAL APPLICATIONS

Double Heighted LoungesPatio & Veranda
Auditoriums & Marquees
Commercial Buildings
Factories & Warehouses
Mosques & Madaris
Sports Facilities
Retail & Hospitality

TECHNICAL SPECIFICATIONS

Model Amps Power Speed Air Delivery Service Value
HVLS 60" 0.39 85W 180 RPM 305 m³/min 3.58
HVLS 70" 0.39 85W 160 RPM 320 m³/min 3.76
HVLS 80" 0.39 85W 135 RPM 360 m³/min 4.23

KEY FEATURES

LCD RF Remote – 7 Speeds
BLDC Motor Technology
As Low as 10 Watt
Ultra Low Noise (15 dB)
24V Shock Proof Safety
4KV Surge Protection
Auto Timer (1–8 Hours)
No Dimmer Required

INSTALLATION PROCESS

Installing the Royal HVLS Inverter Fan is straightforward:

    1. Secure bobbin into ceiling hook

    2. Insert downrod and route AC wiring

    3. Fix clamp and tighten bolts

    4. Mount motor and attach blades

    5. Connect PCB wiring and canopy

    6. Power on and pair the remote

Select Size
Select Color
From $71.69

Original: $204.84

-65%
HVLS Inverter Fan—

$204.84

$71.69

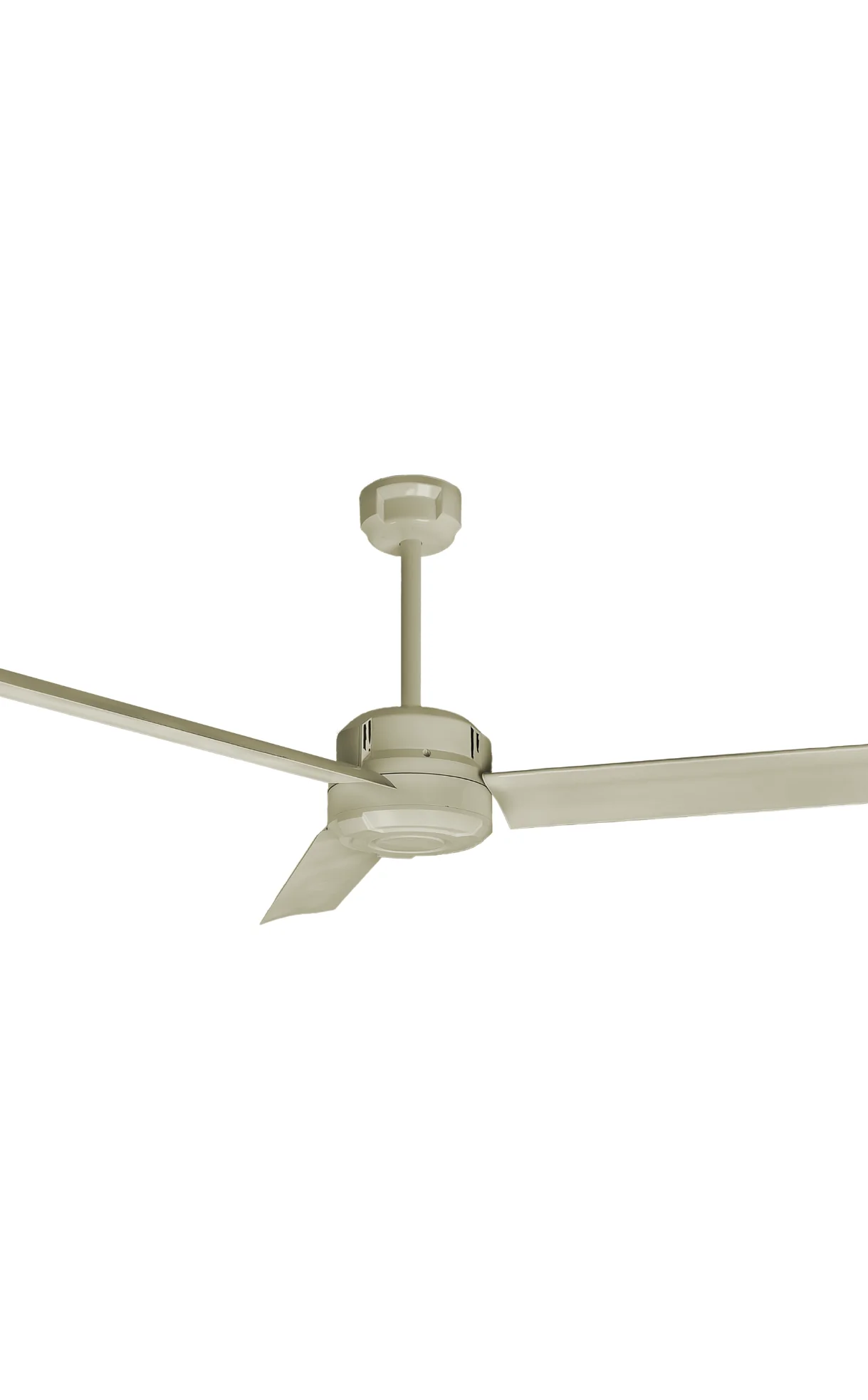

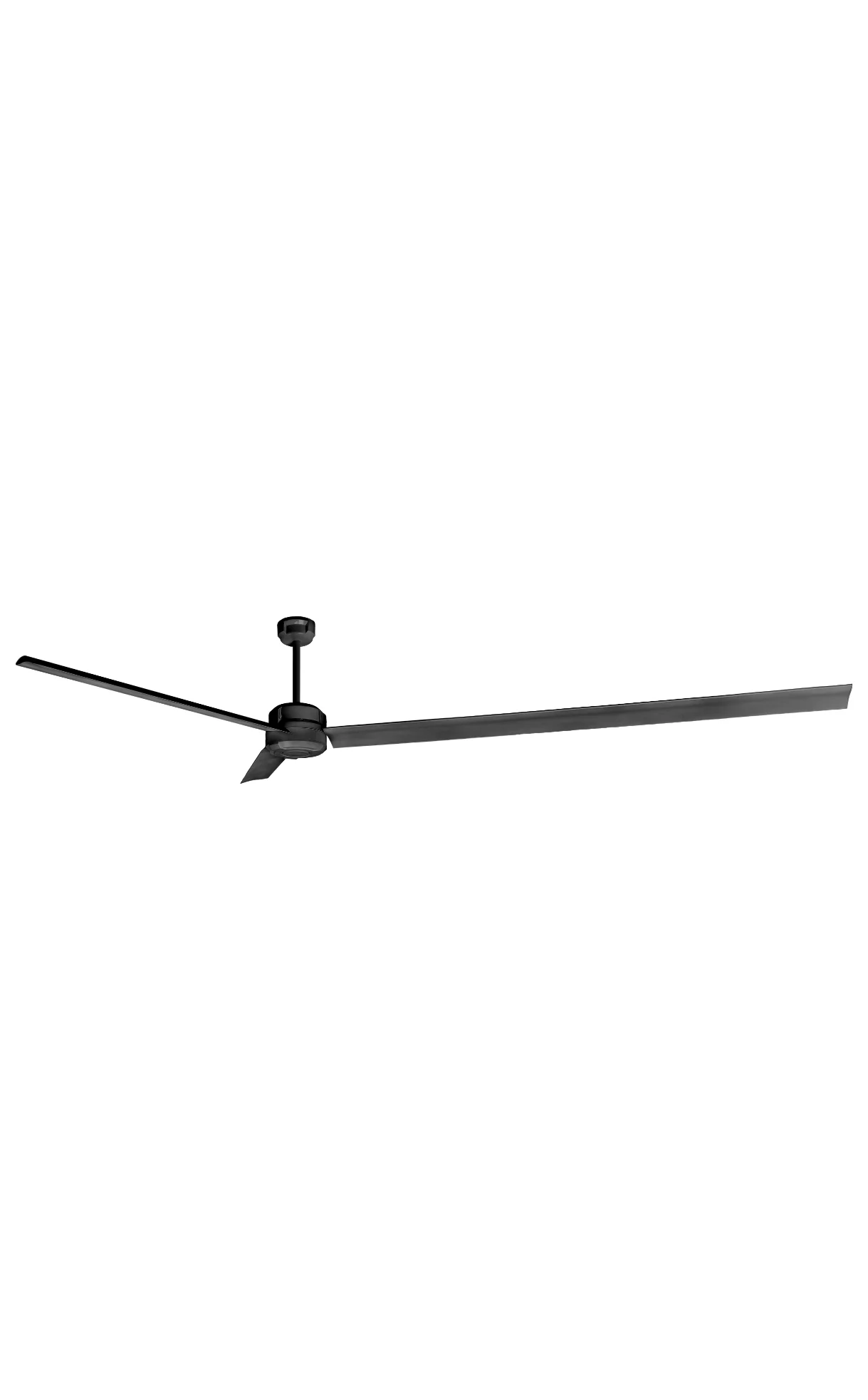

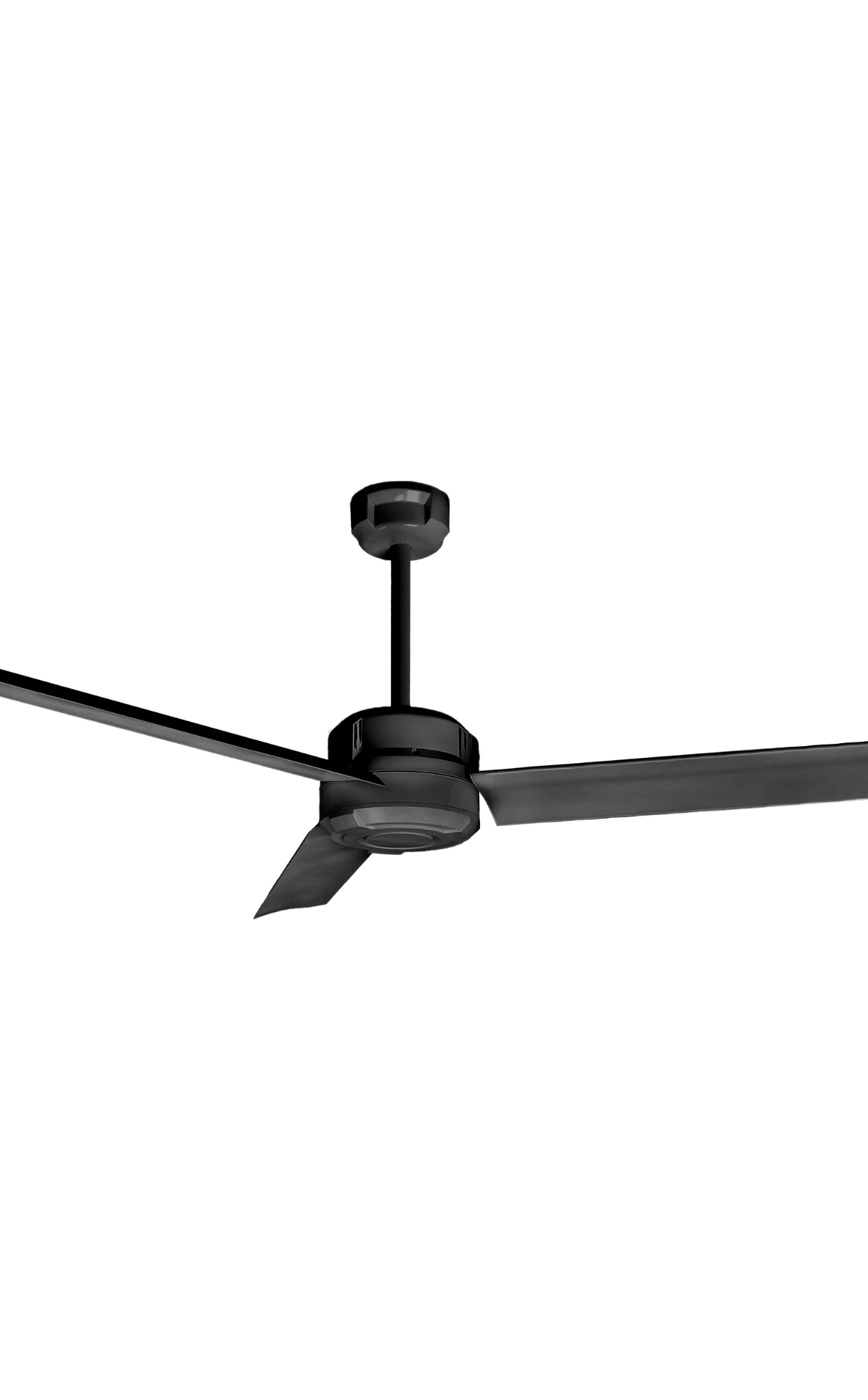

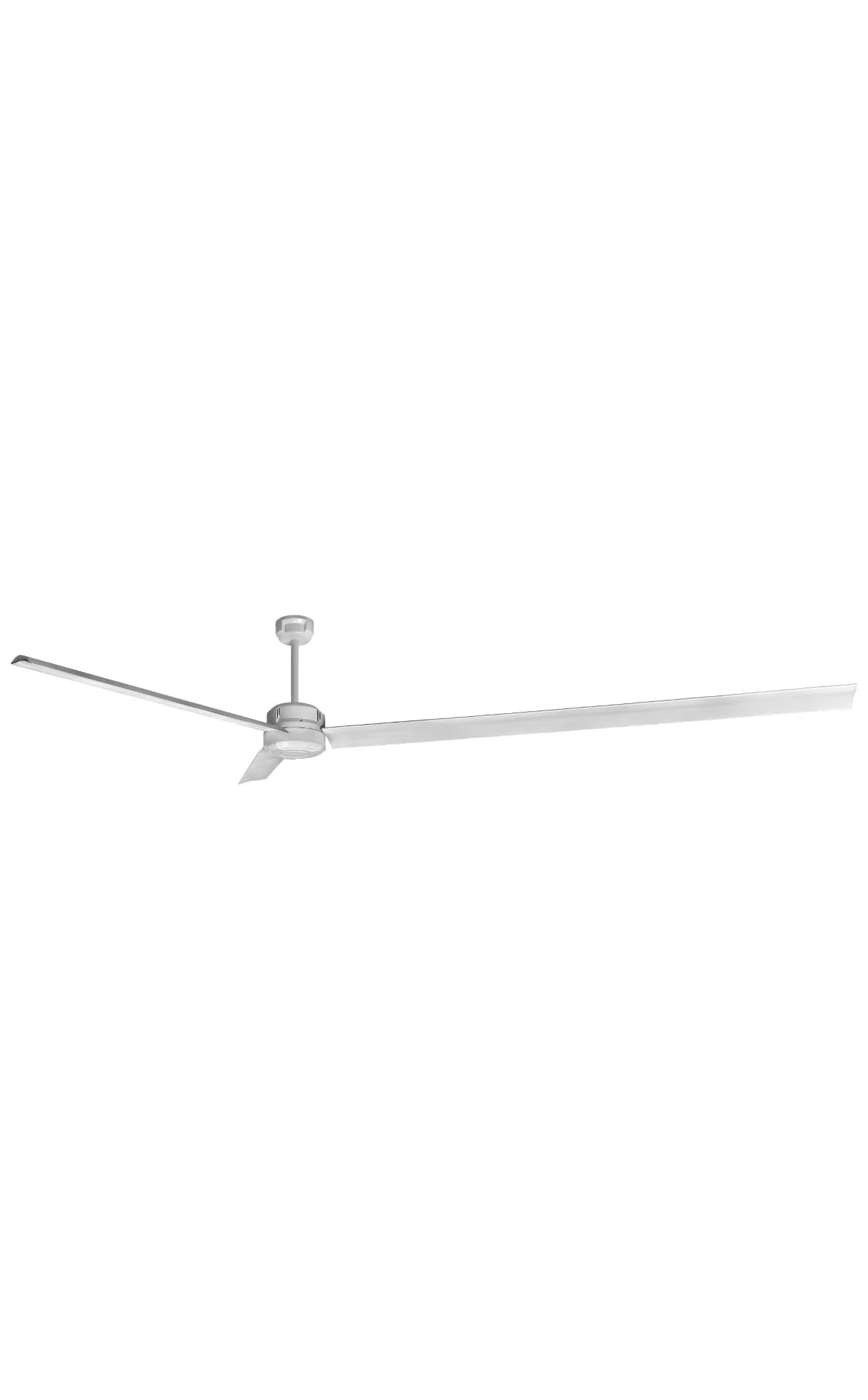

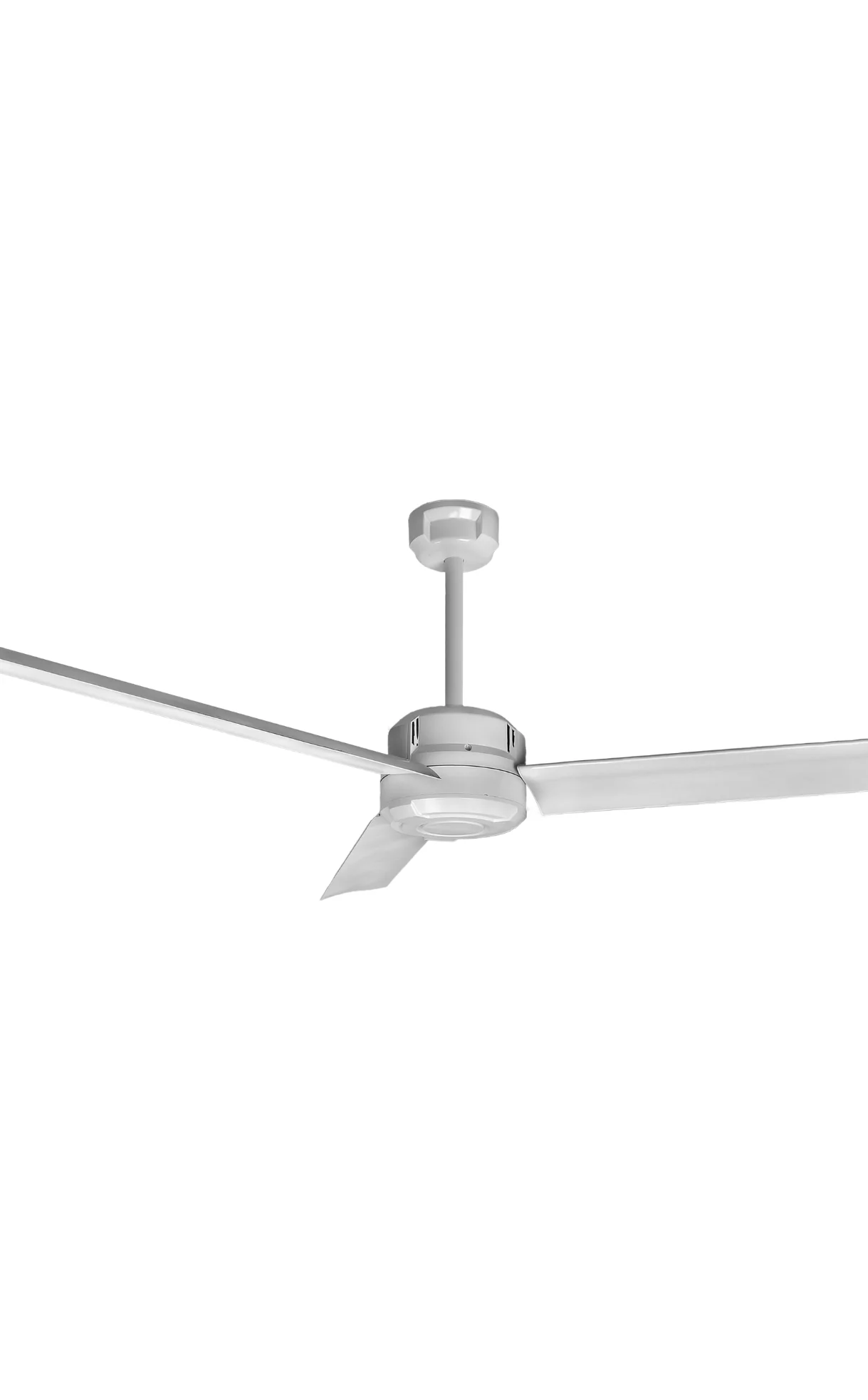

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Description

Start Image

Royal Fans proudly presents the Royal HVLS Inverter Fan, engineered to deliver maximum airflow with minimal energy consumption. Designed for large spaces, this fan ensures gentle, consistent, and ultra-quiet air circulation, making every environment more comfortable, productive, and energy-efficient.



HOW IT WORKS

The Royal HVLS Inverter Fan features large aerodynamic blades that move air downward in a smooth vertical column. When the airflow reaches the floor, it disperses evenly across the space. This results in uniform cooling, improved air circulation, and reduced HVAC load, all while maintaining low energy consumption.

Middle Image

IDEAL APPLICATIONS

Double Heighted LoungesPatio & Veranda
Auditoriums & Marquees
Commercial Buildings
Factories & Warehouses
Mosques & Madaris
Sports Facilities
Retail & Hospitality

TECHNICAL SPECIFICATIONS

Model Amps Power Speed Air Delivery Service Value
HVLS 60" 0.39 85W 180 RPM 305 m³/min 3.58
HVLS 70" 0.39 85W 160 RPM 320 m³/min 3.76
HVLS 80" 0.39 85W 135 RPM 360 m³/min 4.23

KEY FEATURES

LCD RF Remote – 7 Speeds
BLDC Motor Technology
As Low as 10 Watt
Ultra Low Noise (15 dB)
24V Shock Proof Safety
4KV Surge Protection
Auto Timer (1–8 Hours)
No Dimmer Required

INSTALLATION PROCESS

Installing the Royal HVLS Inverter Fan is straightforward:

    1. Secure bobbin into ceiling hook

    2. Insert downrod and route AC wiring

    3. Fix clamp and tighten bolts

    4. Mount motor and attach blades

    5. Connect PCB wiring and canopy

    6. Power on and pair the remote
